Number of Cavity :- 4 Cavity
.png)
Bottle Output :- 9000 BPH (150 BPM)
Container Volume :- 1000 ML
Max Bottle Diameter & Bottle Hight :- 85 mm & 280 mm
.png)
Max. Preform Neck Diameter & Preform Height :- 28-145 mm
Total Power Connected Load (1 LTR) :- 58 Kw
.png)
Actual Power Consumption (1 LTR) :- 34 Kw
.png)
Voltage Stabilizer Requirement :- 75 KVA(415V 3Φ, 50Hz)
Low Pressure Compressor Requirement :- Not Required
High Pressure Compressor Requirement :- 190 CFM
.jpg)
Water Chiller Requiement(100LPM@3BAR)-9 TR(8-10°c)
.png)
Number of Cavity :- 6 Cavity
.png)
Bottle Output :- 12000 BPH (200 BPM)
Container Volume :- 1000 ML
Max Bottle Diameter & Bottle Hight :- 85 mm & 280 mm
.png)
Max. Preform Neck Diameter & Preform Height :- 28-145 mm
Total Power Connected Load (1 LTR) :- 70 Kw
.png)
Actual Power Consumption (1 LTR) :- 43 Kw
.png)
Voltage Stabilizer Requirement :- 100 KVA(415V 3Φ, 50Hz)
Low Pressure Compressor Requirement :-Not Required
High Pressure Compressor Requirement :- 230 CFM
.jpg)
Water Chiller Requiement(100LPM@3BAR) - 10 TR(8-10°c)
.png)
Number of Cavity :- 6 Cavity
.png)
Bottle Output :- 10000 BPH (170 BPM)
Container Volume :- 2000 ML
Max Bottle Diameter & Bottle Hight :- 110 mm & 350 mm
.png)
Max. Preform Neck Diameter & Preform Height :- 28-150 mm
Total Power Connected Load (1 LTR) :- 106 Kw
.png)
Actual Power Consumption (1 LTR) :- 54 Kw
.png)
Voltage Stabilizer Requirement :- 125 KVA(415V 3Φ, 50Hz)
Low Pressure Compressor Requirement :- Not Required
High Pressure Compressor Requirement :- 300 CFM
.jpg)
10. Water Chiller Requiement(100LPM@3BAR)- 12 TR (8-10°c)
.png)
Number of Cavity :- 8 Cavity
.png)
Bottle Output :- 15000 BPH (250 BPM)
Container Volume :- 1000 ML
Max Bottle Diameter & Bottle Hight :- 85 mm & 280 mm
.png)
Max. Preform Neck Diameter & Preform Height :- 28-145 mm
Total Power Connected Load (1 LTR) :- 100 Kw
.png)
Actual Power Consumption (1 LTR) :- 54 Kw
.png)
Voltage Stabilizer Requirement :- 125 KVA(415V 3Φ, 50Hz)
Low Pressure Compressor Requirement :- Not Required
High Pressure Compressor Requirement :- 300 CFM
.jpg)
Water Chiller Requiement(100LPM@3BAR)-12TR(8-10°c) - 12 TR (8-10°c)

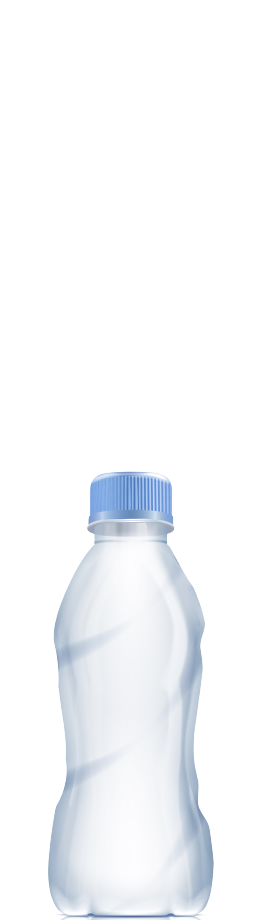

200 ML

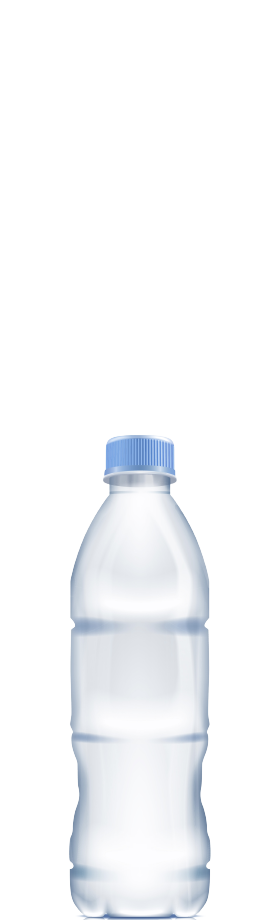

500 ML
1 Ltr.

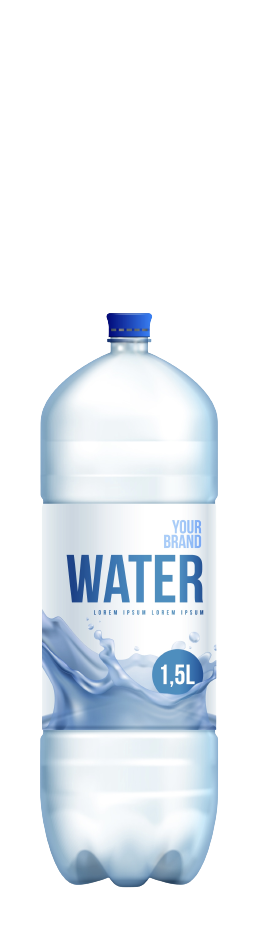

1.5 Ltr.

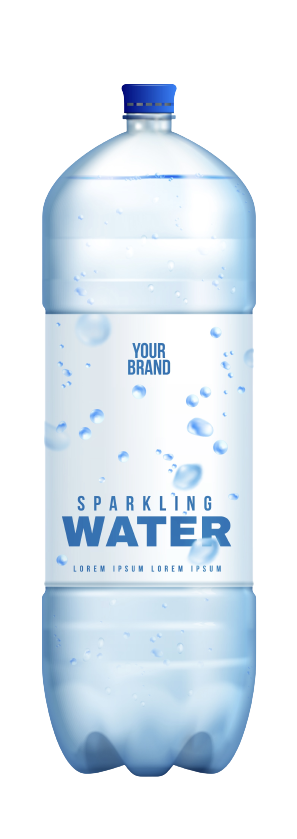

2 Ltr.
